555 Module and Soundcard Oscilliscope

As I'm still waiting on parts, I decided I needed a 555 circuit module because I build the circuit so often. If I had the circuit ready to go, I could just plug it in without worrying about messing with that part and get to the nitty gritty. The 555 circuit I have built a zillion times looks like this:


Or like this depending on your perspective:


Any ways looking for resisters and hooking all that crap up every time I need it gets old so I needed a ready made reusable dealie I could just plug in.

However, since I'm not too interested in doing all the math, I wanted to work everything out without thinking about it. So I made the sound card oscilloscope so I could measure the frequencies and see the waveform right on my computer like so:


That picture is an actual capture of my computer reading the 555. The circuit for the probe looks like this:


And I didn't photograph the actual probe circuit because it doesn't look impressive and this kid would pop out and heckl…

3d Printer Part 17

I had a bunch of trouble today. My calculations assumed I was using 16 microsteps per axis so my printer suffered numerous head crashes. Belts and gears don't like that. The printer thought it was 16 times larger than it was so it was trying to traverse the axis' that much. It is a scary sound when your printer tries to destroy itself. I may have peed a little. Anywho! I searched the firmware, the slicer software settings, and the printer interface software settings for microstep settings. Several internet searches later, I found they are set with jumpers under the stepper motor controllers on the RAMPS board. Anyone care for a tall glass of RTFM? I set my x and y axis' to 1/4 micro steps and adjusted the firmware config accordingly.

Shortly after, my x belt kept jumping and skipping teeth. That was freakin awesome. The jumping could be dealt with pretty easily but skipping teeth makes it so the center moves while it's printing like in this cropped versio…

3d Printer Part 16

Commentary conspicuously absent:






















3d Printer Part 15

I moved the gantry back.. too freaking much! Nice. I swear sometimes I move freely between and hacker and hack. Well, I'm not moving it again so all of you can just deal with it. On top of that, for this post I ran in there to take a picture because I added an accent light and it was cool. I connected it backwards and fried the voltage inverter for the light- awesome.

I did my calculations for calibrations. I'm using this page and this calculator works nicely. Below are my printer's axis vitals.

X axis:
Motor M42SP-6TG with a 7.5º step and a 16 tooth gear driving a belt that looks like it might have 1mm pitch

Code: M92 X20.83 (8.15)

Y axis:
NEMA 17 with a 1.8º step and a 20 tooth gear driving an MXL belt with a pitch of 2.03mm
Code: M92 Y78.82 (19.7)

Z axis:
NEMA 17 with a 1.8º step directly driving an SAE 5/16 rod with 16 threads per inch.
Code: M92 Z2267.72 All of these are on A4988 stepper drivers with 16 microstep capability so the calculations take this into account.

I…

3d Printer Part 14

Tonite, I modified a few reset buttons(dpst) from old computers from normally open to normally closed. Those switches work nicely because they come with the Dupont plugs that fit my RAMPS shield.

They are going to be used as end stops(currently I'm just using jumpers) The end stops are needed to establish an origin in the Cartesian geometry the printer uses to to determine where to put plastic. It won't be to long before I can start calibrating and then I can run the slicer program.

Before I do that, I'm going to move the gantry back a couple inches because in my lack of planning(true intp), the build bed doesn't get enough travel under where the j head is going to traverse.

I get the slicer dealie running, that'll be a cool video! Imma have to find some nice funky music for it.

I know I didn't mention I was going to do this but hopefully I can put together the protection circuit for my sound-card oscilloscope this weekend. I've wanted an oscillo…

3d Printer Part 13

As one could see in this video, the bed slides on rods which ran through holes drilled in pine furring strip. It was wicked tight so I bored them out a bit which resulted in a loss of precision. I was going to make that up but devising some adjustment dealie. When I saw(and heard) how it chatters I knew I needed a harder point of contact to lessen the friction. Even a hard wood would have improved the ride of the thing. I bought some nuts which fit on the rods nicely and slid freely. I fashioned a magnificent bracket which holds said nuts in a precise manner:


Sadly any weight caused those hard nuts to bite my rods. That's right- my nuts bit my rod. I rolled a small piece of sand paper to round off the the inner threads of deez nutz and BAM! It didn't work. Still binding.

Out in the garage I found some brass or bronze nuts which although they didn't fit as snug, they like sliding on cold rolled steel more than steel nuts. Gaze upon the nuts:


Naturally brass or…

3d Printer Part 12

I put the motor from a scanner on the slide from a printer. I got my gears and mounted one on a motor to get the bed moving. It works great pulling but it chatters when pushing so I'll be rethinking that. In the latter part of this video, can see the z axis working with slide mounted on it:


My extruder parts came and I mounted them on one of my motors. Please ignore the fact the pictures are blurry or I will destroy you.

3d Printer Part 11

The lady from whom I purchased the motors did not get my note to her about wanting the gears for the motors so she didn't include them. I begged her to send them to me and she is going to send them.

I ordered this j-head with teflon tubing today for $21.99 and the gear I need for $1.33. With the motor I got for $8 and the printed parts for the extruder, my total for the bowden extruder/hot end setup is $38.82 which clearly beats getting this one w/no j head and this one including everything.

I'm going with the bowden setup because the motor/extruder combo can be mounted basically anywhere so the z axis motor and the y axis motor doesn't have to move the weight of the extruder. My plan in the future is to add a second extruder so saving the weight now makes sense. Cripe I'm proud of myself! My parents didn't have any kids that lived.

Today, I messed around more with the Pronterface which is.. wait for it.. a printer interface. I don't know why there i…

3d Printer Part 10

I got my motors I paid $39.99 for

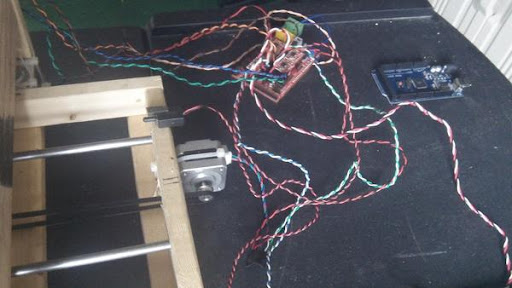

and have already tested them and determined their pinouts. That black thing on the breadboard is an H bridge motor controller and I don't currently know how to limit current on that kind of circuit so that puppy gets wicked hot powering the nema 17.

I also got my Arduino and my RAMPS shield.

I did a couple experiments and got the Arduino to drive the motor. I didn't make a movie because it would be redundant as I've already done the same thing a couple times with gate logic and now I've to done it programmatically. I have to say I found the Arduino IDE pleasant and easy to use and set up. I read about some people complaining about the non brand name Arduinos giving a problem because the serial chip is a cheap CH340G. Even the ebay seller sent me a message reminding me to download the drivers for it which I did. Windows 7 found and installed the drivers by itself. The IDE was able to communicate with it and install the firmw…

3d Printer Part 9

I broke out the drill press so I could make some precise holes in some scrap wood I have. I built a little bed on rails and connected it to the motor using a zip tie as a link. As you can see in the video my pinch roller wasn't pinching enough so it slipped. It occurred to me that whenever I'm building something, I'm always frantically searching for hardware. While I'm out gallivanting around on the morrow, I'll pick a bunch of nuts and bolts and I'll be able to make good brackets and stuff. That will rock.
I used the circuit from my last video to drive this motor but I eliminated one of nte1825's and bumped the voltage up to 12 volts on the remaining one. That made the motor strong enough to move the bed with a spool of solder on it. You view now:


I have some breadboards in route here from China so I can make some reusable modules for my experiments.

3d Printer Part 8

I got the teac motor working with my circuit and I bought a grip of ttl chips to play with.

I'm going to have some extra parts I'm not using in the 3d printer so I've been considering other project I can make out of those parts. Maybe a couple persistence of vision projects featuring lasers like a raster and/or vector display or 3d scanner.

Mayhaps my faithful readers can give some suggestions of microcontroller controlled automation projects..

Killing time till my parts get here, I made another circuit with a counter and a demultiplexor(the last one, I made the demultiplexor with NAND gate & AND gates). View it here:


Someone asked this:
"is knowing which bits to print first complicated? or do you just get the printer to start at the bottom and trust your 'plans' will work out ok printed that way?"

Mostly, you just can't print anything horizontal that is hanging in the air without support because there is nothing to squirt the plastic ont…

3d Printer Part 7

Welp, I ordered the Arduino Atmega 2560 which I got for $10.59 and the RAMPS shield with 5 motor drivers for $18.04. I will now wait as fast as I can until they get here from China.

I believe my plan for now is to make it work with crappy printer motors until I can upgrade them to NEMA 17s like the plans call for. I might order the heated bed today too.

The circuits I made above drive the motor at 5 volts which is not enough to run the motor at full power and speed, but I was being conservative as I'm not really electrically inclined either beyond basic circuits and digital design.

Also, I have discovered in my reading, the traversing bed is the y axis not the x axis.

I found one of my Teac motors from a 5 1/4 floppy drive and know I have at least 2 more- Weee! Also, I remembered I have 4 micro-controllers I could have used to simplify my design- 3 TI Launchpads and a coriduimcorp microcontroller! The reason that is easier is that rather than wiring 2 gates with 6 wires…

3d Printer Part 6

The image shows a dude not happy with what he has as it is woefully inadequate.

My Dell printer yielded 2 stepper motors and a regular permanent magnate motor and the main slide I want to use has guess which motor mounted to it? That's right. The permanent magnet motor which can't be used in this application. I look upon those printer parts as the Phantom Limb looks at his baby arm.
